Specification Sheet in PDF
Motor
0.37 kW 900 rpm
Motor Enclosure
TEFC
Number of blades
12
Blades Material
GRP
Blade pitch
20°
Casing Materials
Hot Dip Galvanised Mild Steel
Power supply
3 phase 50 Hz 415 V AC
* Externally mounted weather proof plastic terminal box
* Performance standard BS 848

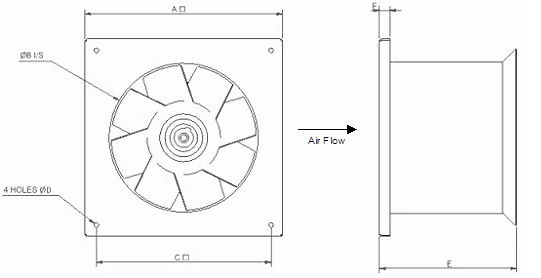

A
B
C
D
E
F
500 mm
585 mm
12 mm
560 mm
400 mm
Motor 0.37 kW 900 rpm Motor Enclosure TEFC Number of blades 12 Blades Material GRP Blade pitch 20° Casing Materials Hot Dip Galvanised Mild Steel Power supply 3 phase 50 Hz 415 V AC * Externally mounted weather proof plastic terminal box * Performance standard BS 848
655 mm
615 mm
11 mm
260 mm
25 mm
